Welcome to the world of structural frameworks

Rectangular Leonardo spaceframe

This page is about how to build a rectangular spaceframe using angle iron - or similar material.

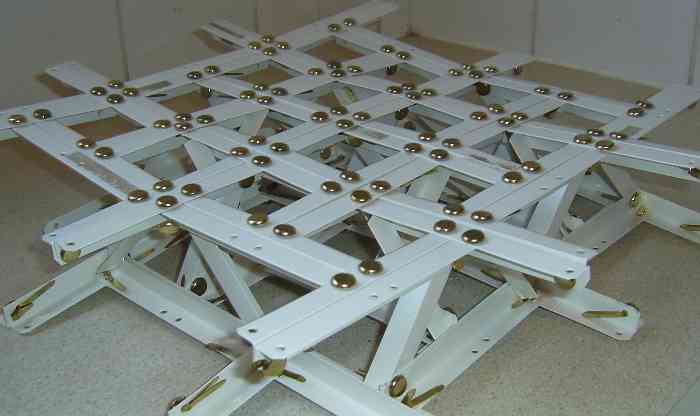

PVC angle model (plan)

The main attraction of using angle iron is that it is inexpensive. It is one of the cheapest ways to buy steel struts. It is the same material that is used to construct electricity pylons.

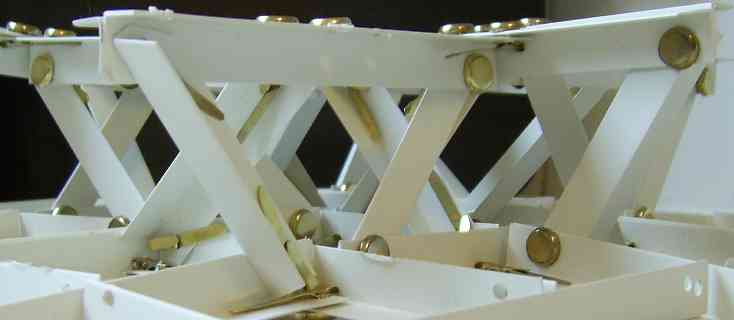

PVC angle model (front)

This page illustrates the layout using a model made of 12mm PVC angle - and brass paper fasteners.

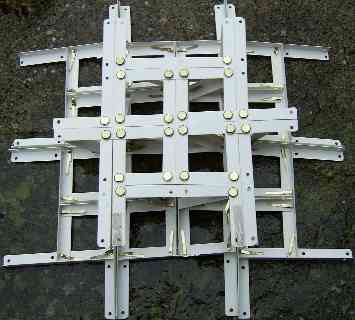

PVC angle model (under construction)

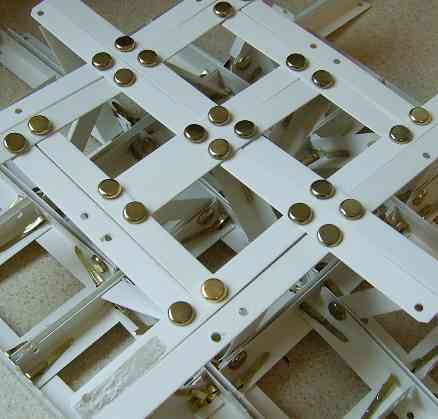

PVC angle model (isometric)

The spaceframe described here is based on a pattern by Leonardo da Vinci.

It consists of two layers of "Leonardo" fabric, joined together by connecting struts.

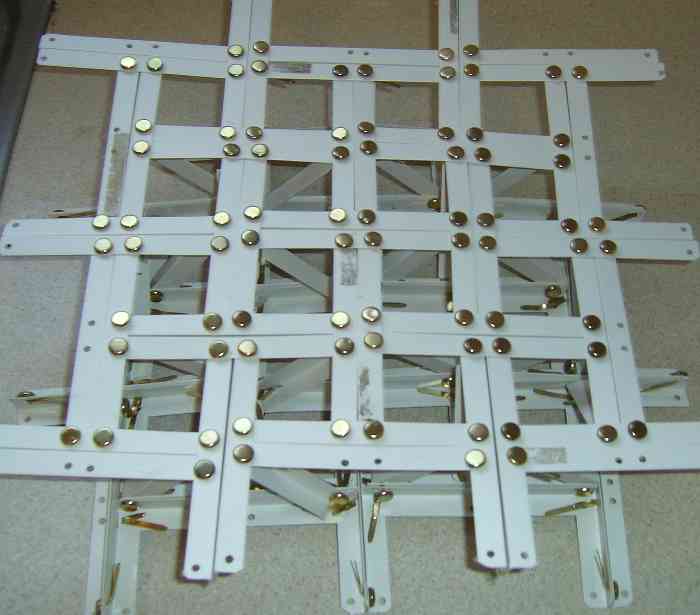

PVC angle (two layers)
PVC angle (two layers)

The model illustrated lacks diagonal support running from the top left to the bottom right. In theory the structure is vulnerable to sheering forces that exploit this omission.

Stabilising elements could be added in to resist such forces.

However, in many applications the framework seems likely to be supported around its edges - so in practice, the omission of these elements is unlikely to me much of a cause for concern.

The spaceframe described here has two identical layers, which are joined together.

One such layer is illustrated in the following two pictures.

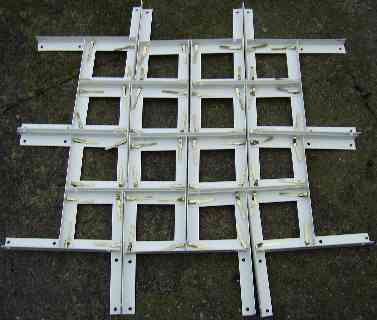

PVC angle (one layer, top)
PVC angle (one layer, bottom)

The following diagram shows the relationship between the classical pattern - as used by Leonardo da Vinci - and the one employed on this page.

Classical 2D rectangular pattern
The pattern with struts pushed together


The design is based around a few basic ideas:

  • The classical Leonardo roof design can be constructed out of angle iron;

  • Such a construction is naturally almost flat. Given materials with appropriate dimensions, it could be made to lie completely flat;

  • Two such fabrics placed back to back can be easily connected together with more angle iron to create a rigid, prestressed structural framework;

  • The resulting structure plays nicely with simple angle iron boxes - which themselves are highly suitable as modular construction units.


This pattern could be used in a number of ways.

It could be used to construct ceilings, floors or trussed roofing planes.

Alternatively, it could find application in the construction of entire rooms.

An attraction in the latter case is that the single-layer Leonardo fabric is excels at spanning large regions - without any other support.

That means that supporting struts between the layers can often be cheerfully omitted. That fact makes it easier to create rooms that span multiple cells - and to create space for doors and other openings.


As with other spaceframes, the structure is suprisingly strong.

Despite being make of plastic only 0.7 millimetres thick, the structure easily supports my own weight when I stand on it:

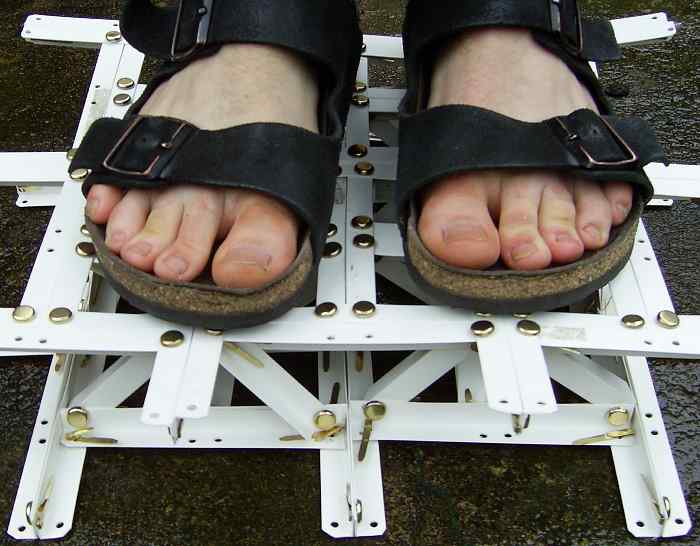

PVC angle model under pressure


Each layer has a chequerboard-like characteristic, with alternate squares being identical.

In the configuration illustrated squares lie over squares of the opposite type. The advantage of that is that it permits all horizontal struts to be identically drilled.

The configuration obtained by placing squares over identical squares has some advantages in the context of making a framework with cells the size of rooms. In particular in such a framework, the cells may more easily be varied in size. Making the cells of different sizes can be useful - when some cells are destined to be corridors.

Shaped surfaces

Deliberately-sheared versions of this fabric may be used to construct anticlastic curved surfaces - for use in the construction of saddle-shaped rooves.

Domes are also possible in theory - using the "Leonardo" ability of the fabric. The shape would be limited to the shape generated by the equivalent "Leonardo" dome under those circumstance.

Vertical support

The pattern is quite suitable for stacking. If stacked very high, adding additional vertical support to the lower cells may become advisable - due to the extra weight they have to bear. There's quite a lot of scope for adding additional vertical struts in the cells to improve weight bearing characteristics.

If used in very tall buildings, adding vertical girders is likely to prove necessary - to supplement the weight bearing properties of of the structure.


The pattern depends on the ability to flex each struct through the thickness of its metal twice over its length.

Struts that are too short to do that are not suitable for performing this construction with.

If you have stiff short struts there are alternatives. Rather than using a leonardo-style fabric, consider one of the following alternatives:

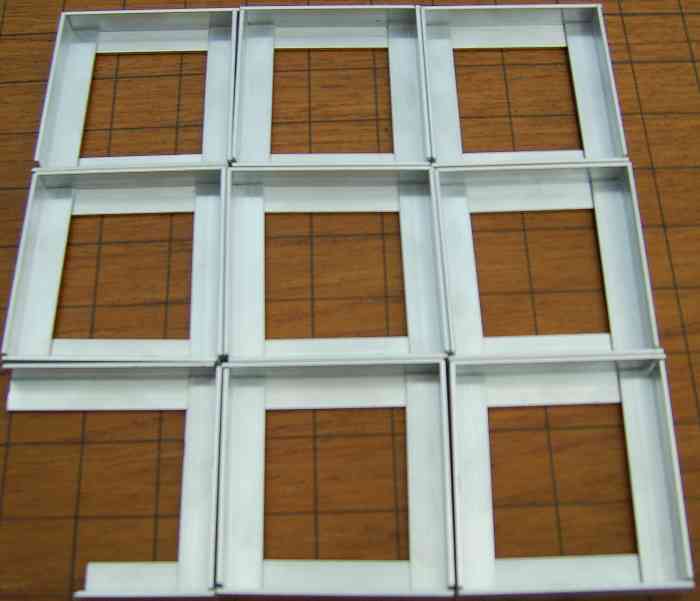

Aluminium angle (dense)

This dense pattern is a close match to the Leonardo layout described above.

The struts are cut shorter - and there is no need to bend the struts.

Aluminium angle (sparse)

This pattern is much sparser than the other ones illustrated.


Compared to the more traditional layouts illustrated in aluminium, the Leonardo pattern uses fewer connectors - through using longer struts.

The longer struts provide strength - and use of the Leonardo pattern helps create a large span if struts need to be omitted.
